| Detailed Product Description: |
| Features: |
| 1. |

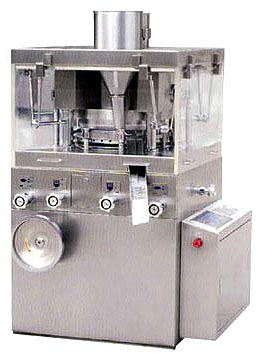

Equipped with double-press automatic rotated serial sheerer |
| 2. |
Can make the granular material produced to all as assortments of tablets, sheet candy, calcium tablet, double-side sheet (printed letter on both sides) |
| 3. |
Suitable for pharmacy, chemical industry, food stuff, electronic, plastic powder and metallurgy |
| 4. |
Suitable for common circle sheet and varied irregular sheet (double-face printing included) |
| 5. |
Outer cover is made of fully close stainless steel and the surface of compass is specially treated to keep the surface polished as well as from polluting |
| 6. |
Qualified with GMP standard |
| 7. |
Equipped with transparent glass door to observe the sheet, and its four side doors and windows can be opened, ease of interior cleaning and upkeep |
| 8. |
Adopts imported frequency governor, simultaneous electromagnetic clutch |
| 9. |
Hydraulic system is equipped with the main lower fuel tank of the machine, which can run for dipping oil |
| 10. |
Hydraulic system is equipped with the main lower fuel tank of the machine, which can run for dipping oil |
| 11. |
Transmission system is equipped with the main lower fuel tank of the machine |
| 12. |
Specially equipped with the dust collector, which can collect the indoor dust and recycle them |
| Main technical parameters: |
| 1. |
Die. amount: 23ps |
| 2. |
Max. pressure: 80kN |
| 3. |
Max. depth: 17mm |
| 4. |
Max. diameter: 28mm |
| 5. |
Max. thickness: 6mm |
| 6. |
Rotated quantity: 14 - 30r/min |
| 7. |
Production capacity: 85,000p/h |
| 8. |
Electric power: 3kW, 380V 50Hz |
| 9. |
Overall dimensions: 1,300 x 1,200 x 1,750mm |
| 10. |
Weight: 2,000kg |
