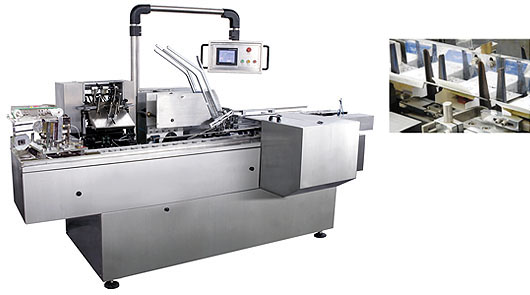

ZHW-100 Model ZHW-100 Full-automatic Boxing Machine
PLC control system;
Current GMP compliant design
Easy and fast size changeover
Secure inserting of product and leaflet
Carton rejection by mission leaflet.
Various coding, such as emboss
Safety and controls of automatic cartooning
Optional:
1.
ink-jet coding,etc
2.
leaflet feeding and conveying system.
ZHW-100 Model ZHW-100 Full-automatic Boxing Machine

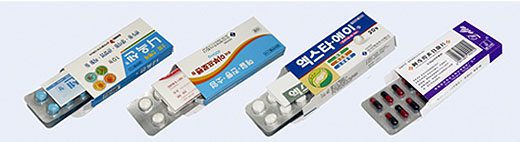

It is suitable for packing pharmaceutical aluminum plastic and other related similar content compact with automatic fish folding, forming. opening and loading, batch
number printing as well as sealing tec processes. It adopts PLC control, photoelectrictry supervision to coordinate with every parts. once something unexpected happens
when its operating. it can stop and display the reasons automatically. it is convenient to solve the troubles in time. this machine can be used separately, and also can
used with other blister packing machines.
The Technical Data:
Electric power connection
380V, 50Hz 1.5Kw
Dimentions
2800X1400X1650mm
Output
50-80cartons/min
Quality of cardboard
box weight:250-300g/m2 , max size:130X80X50mm
Manual
paper weight:55-56g , max size:170X240mm
Air Consumption
20m3/hr
Weight
1200Kg
* Words and photosgraphs on this catalogues are to help understanding of the machine model only and subject to technical modification without prior notice. The final specification is as per our quotation offered to yourself exclusively.
