ZH-100

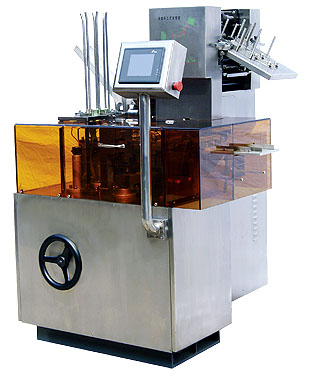

Model ZH-100 Full-automatic Boxing Machine |
 |
« Especially designed to fit the demand from the industry where requires facility in absolute hygienic standard,just like pharmaceutical, medical, food, confectionary, etc. |
 |
|
 |
PLC control system; |
|
Current GMP compliant design |
|
Easy and fast size changeover |
|
Secure inserting of product and leaflet |
|
Carton rejection by mission leaflet. |
|
Various coding, such as emboss |
|
Safety and controls of automatic cartooning |
| Optional: |
| 1. |
ink-jet coding,etc |
2. |
leaflet feeding and conveying system. |
|
The Technical Data:
Output : 20-100cartons/min |
 |
Min size : A/35mmXB/12mmXC/65mm |
Max size : A/78mmXB/65mmXC/125mm |
Quality of carboard box : 250~350g/m2 |
Quality of operation manual : 55~65g/m2 |
Electric power connection : 380V , 50Hz , 4Kw |
Compressed Air Pressure : 0.6MPa |
Air Consumption : 150NL/min |
Air-compressor : ≥ 0.22m3/min(self-prepared) |
Overall Dimensions : 1300X1400X1600mm |
Weight : 900Kg |
|
|
|
