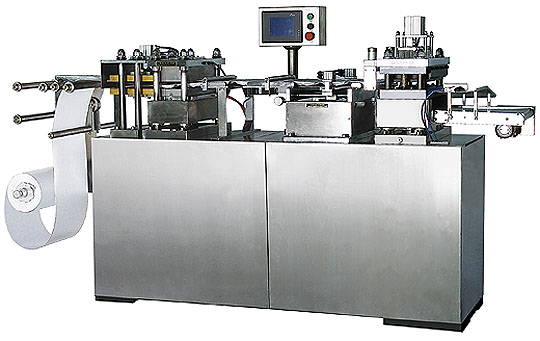

The machine integrates of electricity and optics, adopts the technology like: PC auto-controlling, transducer regulating, the piece of material heated up by temperature, molding by air-press to cutting the finished product, and the numbers of the products can input to the machine. The flow is in a high automatic fuction. It can also configure the PLC computer control.(By the request of client)
It is used for molding the plastic material as BOPS/HIPS/PS/PVC/PET and so on,which is widely used for the minitype soup spoon and the cover of the dish such as the salver of medicine and coffee, the bottleneck of Coca-cola....
The Technical Data:
Max Forming Area
310×150mm
Max Forming Depth
30mm
Max Diameter of Piece
710mm
320×0.1-1mm
Air Pressure
0.5MPa
Punching Frequency
500-1,000 time/hr
Tatal Power of Electic Source
380V 50Hz 5.5Kw
Weight
1,500Kg
Dimensions
2,800×850×1,900mm
* Words and photosgraphs on this catalogues are to help understanding of the machine model only and subject to technical modification without prior notice. The final specification is as per our quotation offered to yourself exclusively.
