PLC control system Current GMP compliant design CE certified
EXCLUSIVE CHARGING SYSTEM

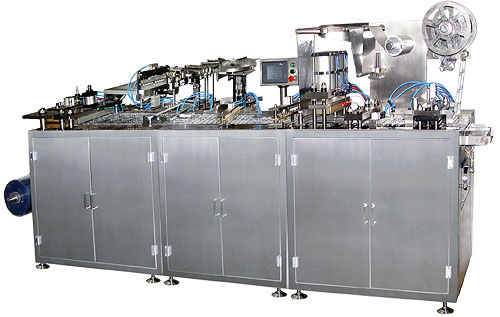

DPP-250P Blister Packing Machine
DPP-250P has been specifically designed for the packaging of ampoules , syringes and small cosmetic products. This solution makes it the idea tray-forming machines with an attractive speed, based on the successful concept of DPP-250B.
The Technical Data:
Maximum machine speed(cycles/min.)
Forming : 50 cycles/min
Forming materials
PVC/PVDC, PET
Lidding materials
PTP. Dialysis paper and others
Blister dimentions
Width:250mm Length:30-120mm Depth:30mm
Maximum production speed
200 blisters/min
Total Power
5.7Kw 380V 50Hz
Air-compressor
≥ 0.22m3/min(self-prepared)0.5-0.7MPa
Weight
1300Kg
* Words and photosgraphs on this catalogues are to help understanding of the machine model only and subject to technical modification without prior notice. The final specification is as per our quotation offered to yourself exclusively.
PLC control system
DPP-250P has been specifically designed for the packaging of ampoules , syringes and small cosmetic products. This solution makes it the idea tray-forming machines with an attractive speed, based on the successful concept of DPP-250B.
