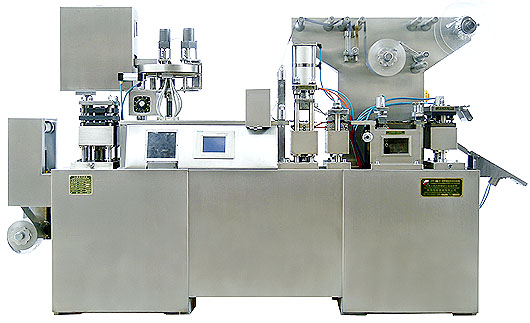

DPP-250E
Series Blister Packing Machine

The Technical Data:
Blanking Frequency 15-25 times/min
Output 3,600-6,000Blisters/ h
Max Forming Area and Depth 240×110×12mm
Specifications of packing Formpack 250×0.15mm PTP 250×0.02mm
Compressed Air Pressure 0.5-0.7MPa
Air Consumption ≥0.22m3/min
Total Power 380V 50Hz 5kw(3 phase)
Size and Weight 2,800 ×800 ×1,900mm 1,500kg

* Words and photosgraphs on this catalogues are to help understanding of the machine model only and subject to technical modification without prior notice. The final specification is as per our quotation offered to yourself exclusively.
