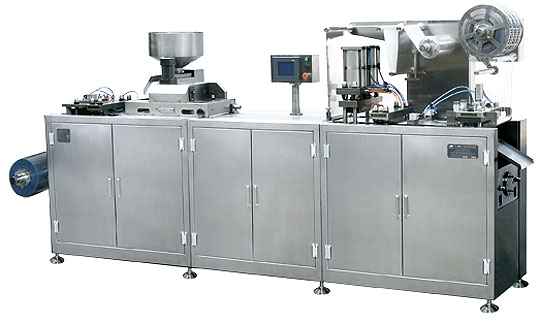

DPP-250DII
Blister Packing Machine
Procedure:
1. Forming film of reel support with automatic unwinding system.
2. Paten heating system
3. Compressed air forming station
4. Filling device(Automatic or Manual)
5. Cover foil reel support with automatic unwinding system cover foil unwinding system.
6. Guide rails
7. Sealing station
8. Coding station (Optional)
9. Punching station
10. Waste winding unit
INTELLIGENT REGULATING SYSTEM UNIVERSAL CHARGING SYSTEM Manipulator Device
The Technical Data:
Maximum machine speed(cycles/min.) Forming : 50 cycles/min
Forming materials PVC/PVDC, PET
Lidding materials PTP. Dialysis paper and others
Blister dimentions Width:250mm Length:30-120mm Depth:18mm (20mm opt.)
Maximum production speed 200 blisters/min
Total Power 5.7Kw 380V 50Hz
Air-compressor ≥ 0.22m3/min(self-prepared)0.5-0.7MPa
Weight 1500Kg

* Words and photosgraphs on this catalogues are to help understanding of the machine model only and subject to technical modification without prior notice. The final specification is as per our quotation offered to yourself exclusively.
