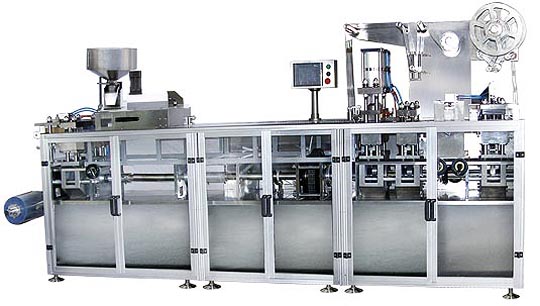

DPP-250DI
Blister Packing Machine
Some technical features: Optional:
1. Compact and simple structure 1. Capsule with orientation
2. Stainless steel construction 2. Safety guard
3. Platen sealing 3. Vision inspection system
4. Automatic rejection of blisters 4. Print registration
5. Conform to GMP standard 5. Servo motion
6. CE certified 6. Can be connected to a cartoner
The Technical Data:
Maximum machine speed(cycles/min.) Forming : 50 cycles/min
Forming materials PVC/PVDC, PET
Lidding materials PTP. Dialysis paper and others
Blister dimentions Width:250mm Length:30-120mm Depth:18mm (20mm opt.)
Maximum production speed 200 blisters/min
Total Power 5.7Kw 380V 50Hz
Air-compressor ≥ 0.22m3/min(self-prepared)0.5-0.7MPa
Weight 1500Kg

* Words and photosgraphs on this catalogues are to help understanding of the machine model only and subject to technical modification without prior notice. The final specification is as per our quotation offered to yourself exclusively.
